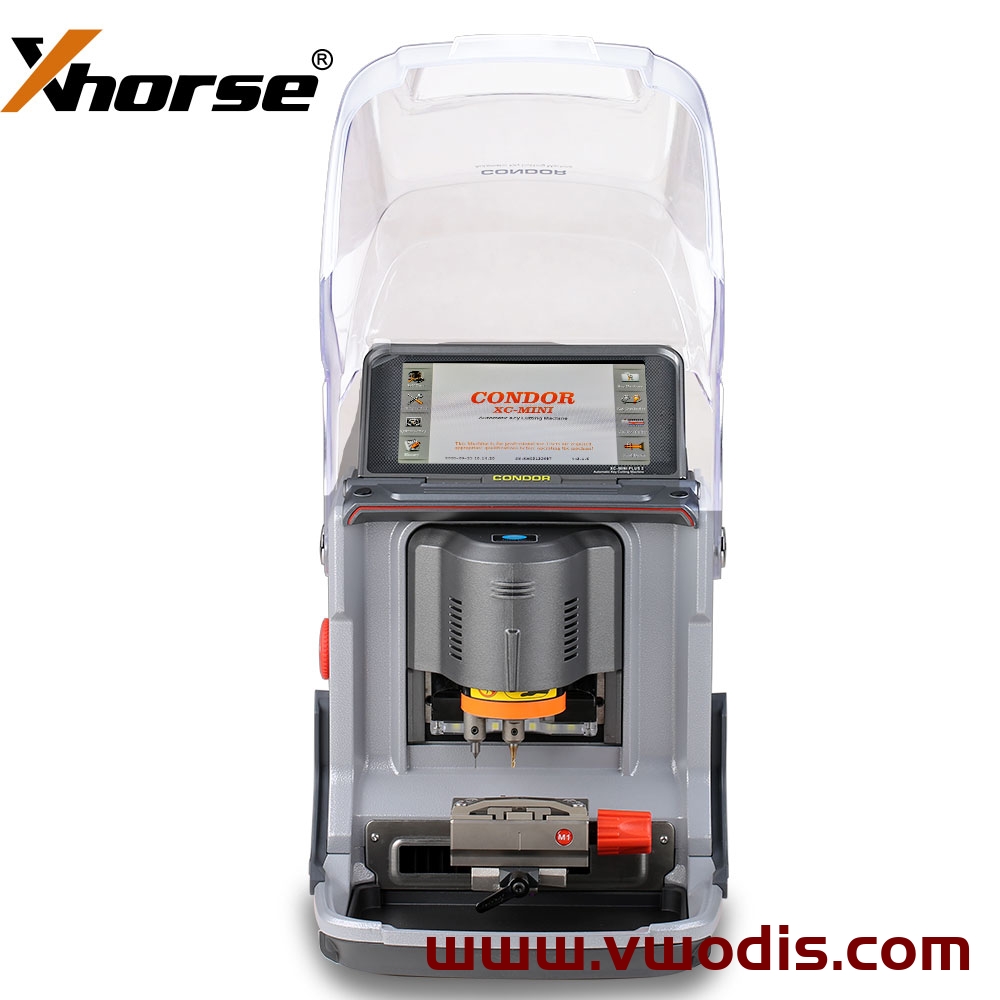

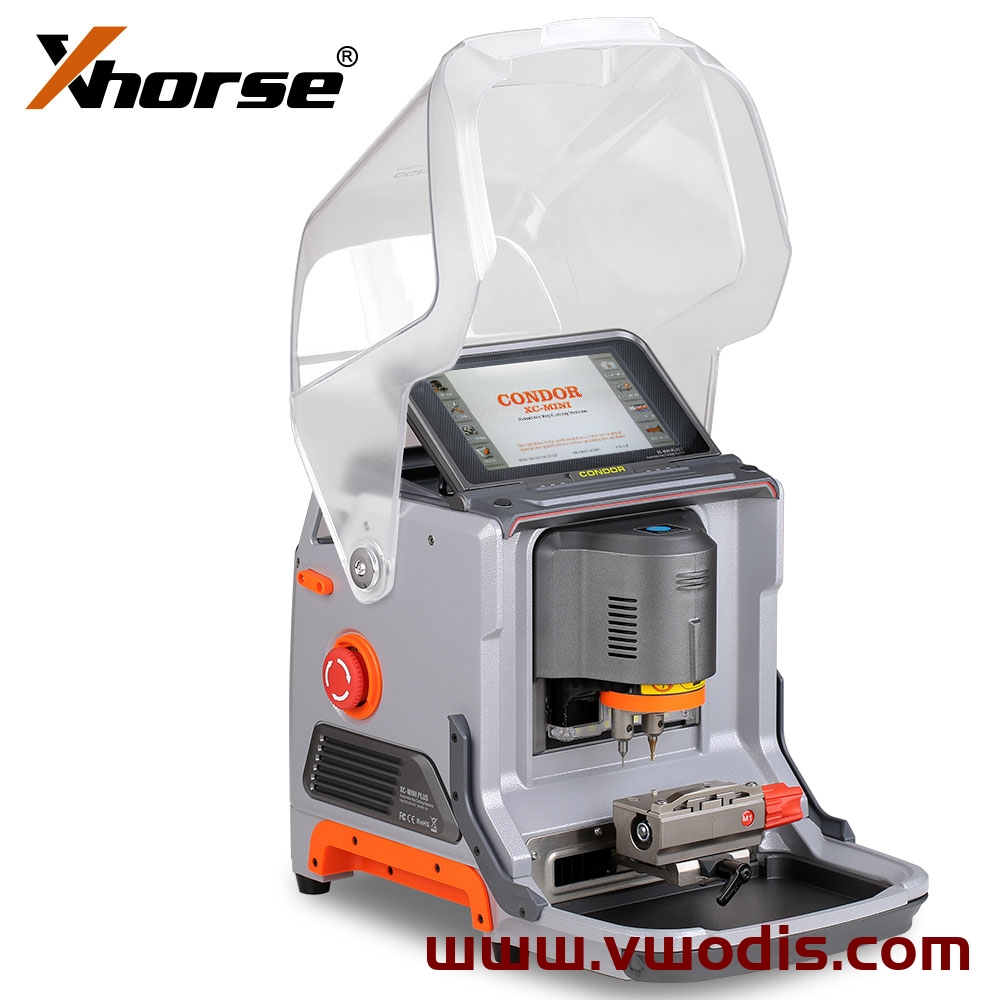

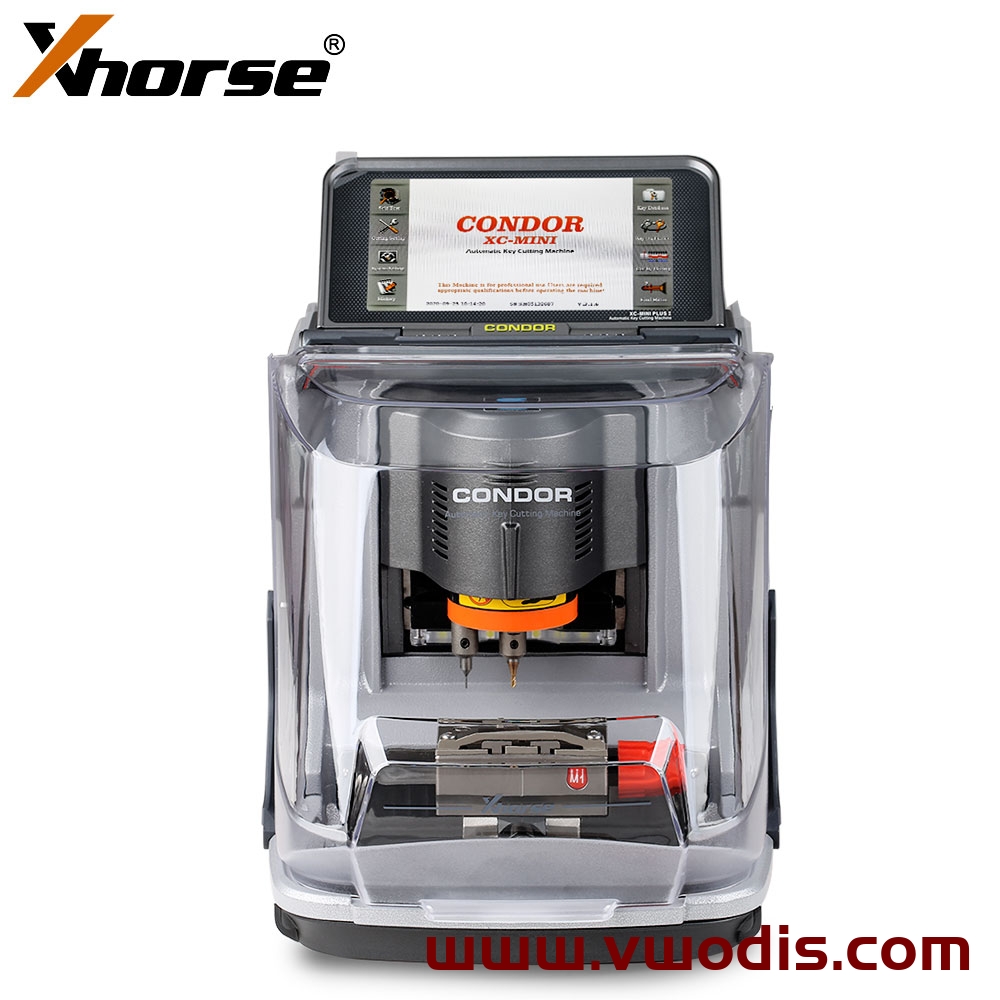

Xhorse CONDOR XC-MINI Plus Automatic Key Cutting Machine

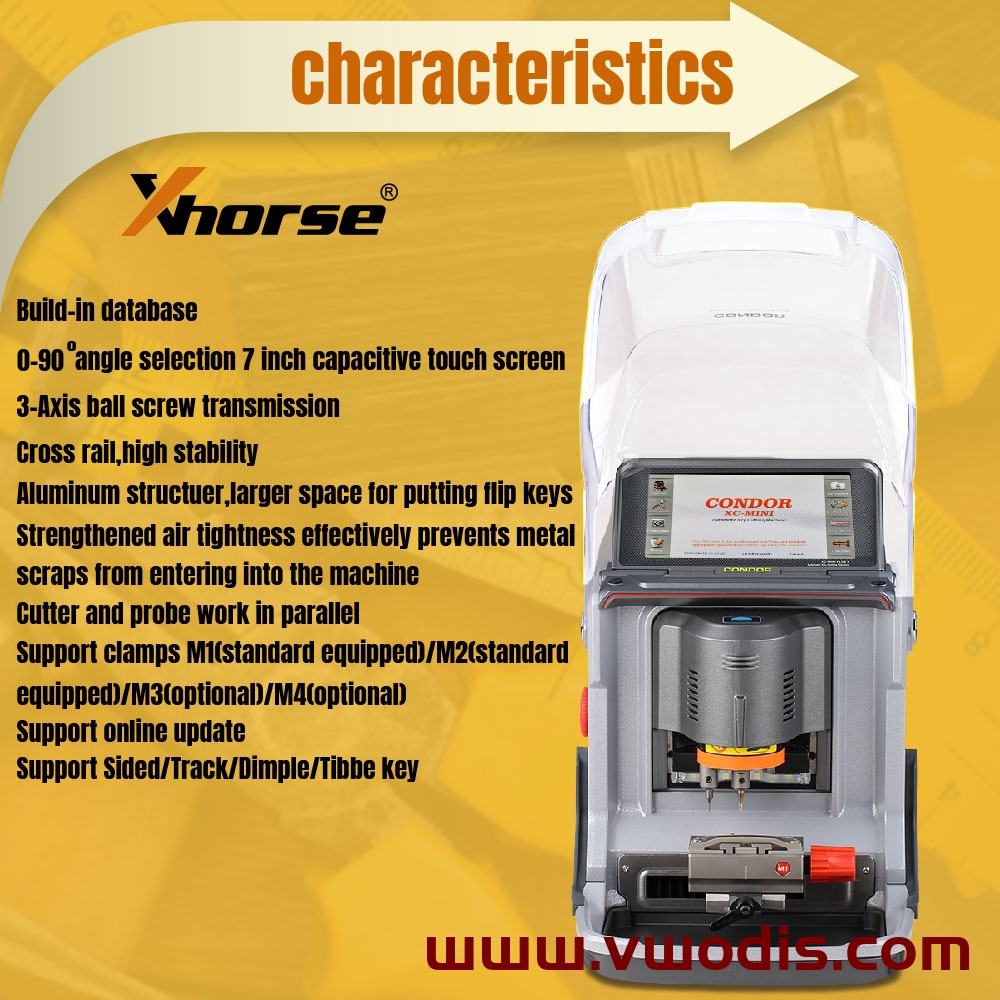

CONDOR XC-MINI Plus Features:

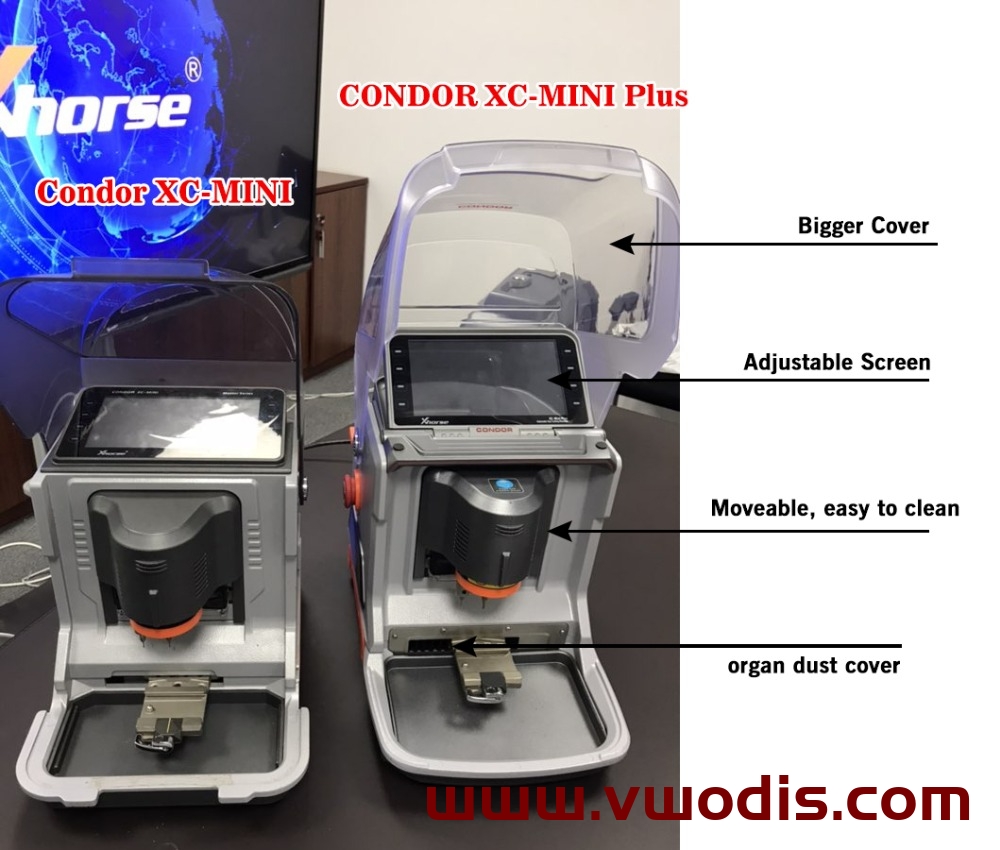

1. Update version of Condor XC-Mini Space between cover and key is bigger than XC-MINI.
For XC-MINI, many keys with casings like for VW flip key will not allow you to close the cover, while CONDOR XC-MINI Plus won’t have this problem.
2. Screen is designed with adjustable angle. Much more convenient to operate and see what’s on the screen.
3. Mounting support – to make it easier when mounting the machine on vehicles when you carry out, it won’t move around.
4. With better PCB and motors, high quality to work more stable and accurate
5. Much easier to clean up, dust after cutting the key won’t get in the machine, which make XC-MINI PLUS with extended service life.
6. Support work with Xhorse APP, Use same Xhorse Dolphin Database.
1. Space between cover and key is bigger than XC-MINI.
For XC-MINI, many keys with casings like for V-W flip key will not allow you to close the cover, while CONDOR XC-MINI Plus won’t have this problem.
2. Screen is designed with adjustable angle. Much more convenient to operate and see what’s on the screen.
3. Mounting support – to make it easier when mounting the machine on vehicles when you carry out, it won’t move around.
4. With better PCB and motors, high quality to work more stable and accurate
5. Much easier to clean up, dust after cutting the key won’t get in the machine, which make XC-MINI PLUS with extended service life.

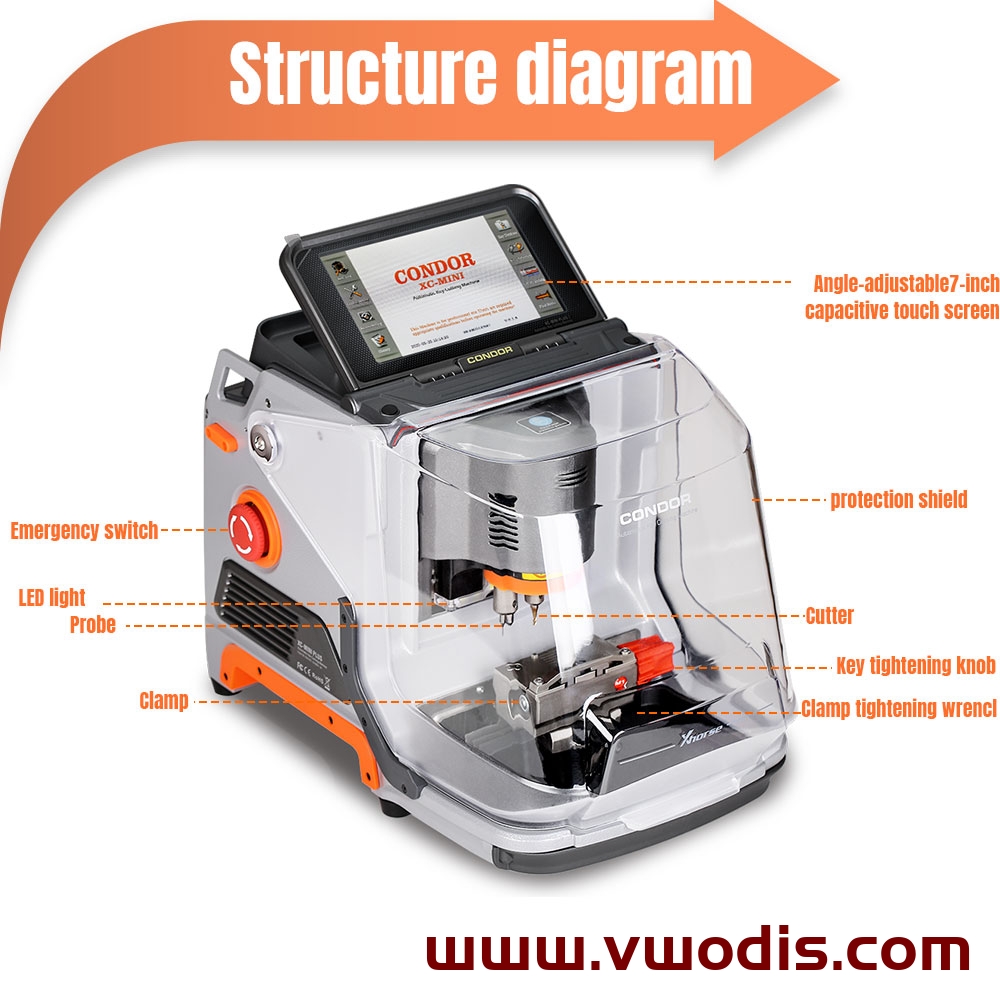

CONDOR XC-MINI Plus Advanced Design, Integrated Casting
Carefully Selected Materials, Trustworthy Experience.
Clamp
There are 4 different clamps: M1, M2, M3 and M4. CONDOR XC-MINI PLUS Automatic Key Cutting Machine standard includes two clamps M1 and M2, which support sided, track, dimple and Tibbe keys. Some Dimple/Tibbe keys require M3 optional clamps, especially for Ford FO21 & Citroen SX9 keys.
M1 and M2 are standard equipped, M3 and M4 are optional.
Built-in Database
Built-in accurate database, detailed parameters, and clear key graphics. Based on the blank key data, users can choose the designated blank key from the data to edit its shape, space, width, and depth in order to form the customized key.
Data of Domestic manufactured automobiles in continuously added into the blank key database. Domestic users will have a more convenienet user experience.
Patent Certificate
Condor XC-Mini Plus Automatic Key Cutting Machine has its Design Patent Certificate, Computer Software Copyright Registration Certificate, Utility Model Patent Certificate, and others.
Essential Tool for All Key Lost:
Condor Mini Plus contains three powerful functions for all keys lost: updated key database, cut by biting & find biting. It is an essential tool for locksmith to recover easier from All Key Lost.
Manufacture Craftsmanship
All aluminum main body, partial accessories made of 304 stainless steel. Gross weight 24KG with stable and durable structure. Machine is equipped with 3-Axis Precision Ball Screw Transmission, which is more accurate and stable than T Screw Transmission.
Power/Motor Specification
Adopting internal general full range AC (Alternating Current) input (90V-26V); working efficiency up to 93%; can sustain surge voltage input (300V) for up to 5 seconds, no-load power loss lower than 5 watts; CONDOR built-in 200V brushless motors; high rotation speed; low noise; minimal vibration; strong reliablity and great stability.
Online Update
CONDOR XC-MINI Plus supports online update. Users can update the machina by connecting the machine to internet-connected PC, server is available 24/7 and free of region restriction for online update.
Support Online file update. Update log will automatically display in software.
Technical Support
Xhorse technical support team provides professional and efficient online technical support for free. Three Years warranty and lifelong after-sale customer service are included in order to guarantee the carefree machine operation for customers. Customers feedback and suggestions are always appreciated.
Support More Than 60 Global Brands, 2,000 Car Models and 20,000 All Key Lost Database

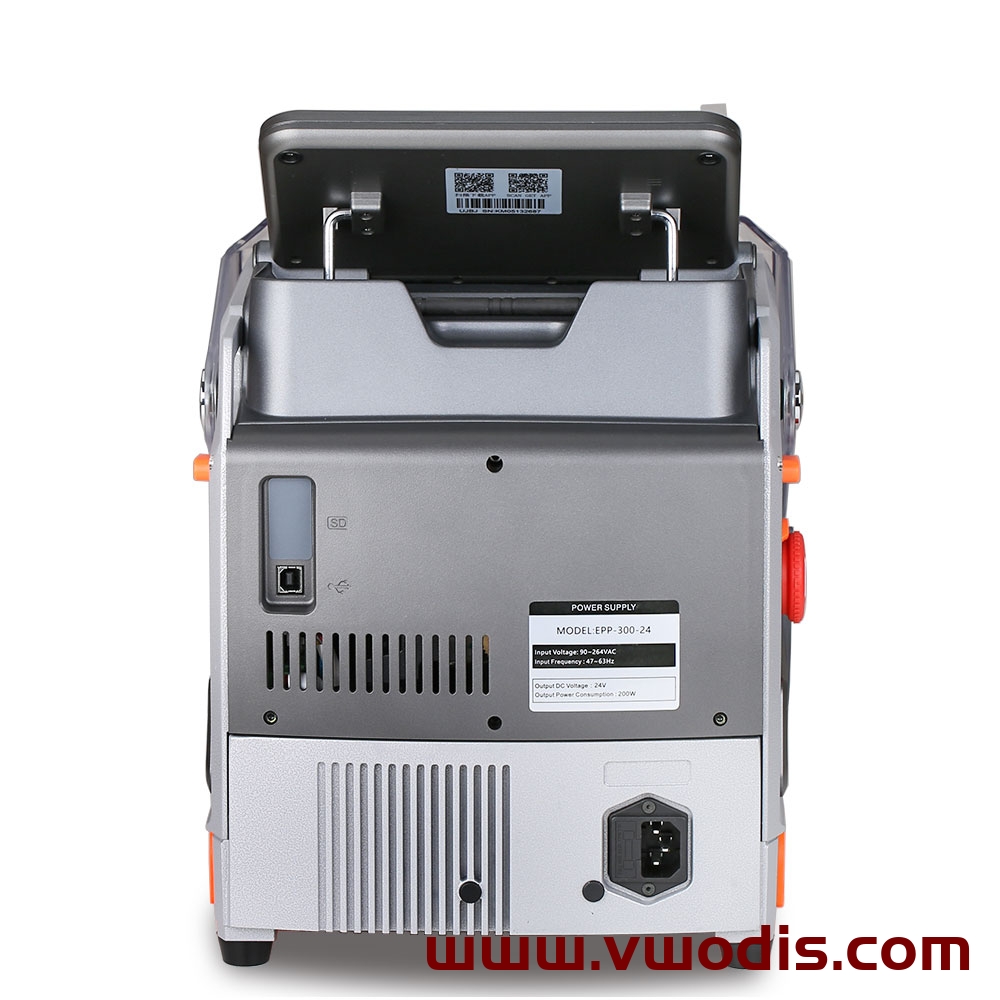

CONDOR XC-MINI Plus Parameter:
Working Temperature: -20-50℃
Humidity: 10-90%
Working Voltage: 90-264V/AC
Input Frequency: 47-63Hz
Package Dimension: 515 x480x380mm
Machine Dimension: 250 x413x300mm
Net Weight: 20kg
Gross Weight: 24kg
Power: 200W
USB port: USB2.0
LED Display: 1024×600
Motor Rotation Speed: 9000rpm

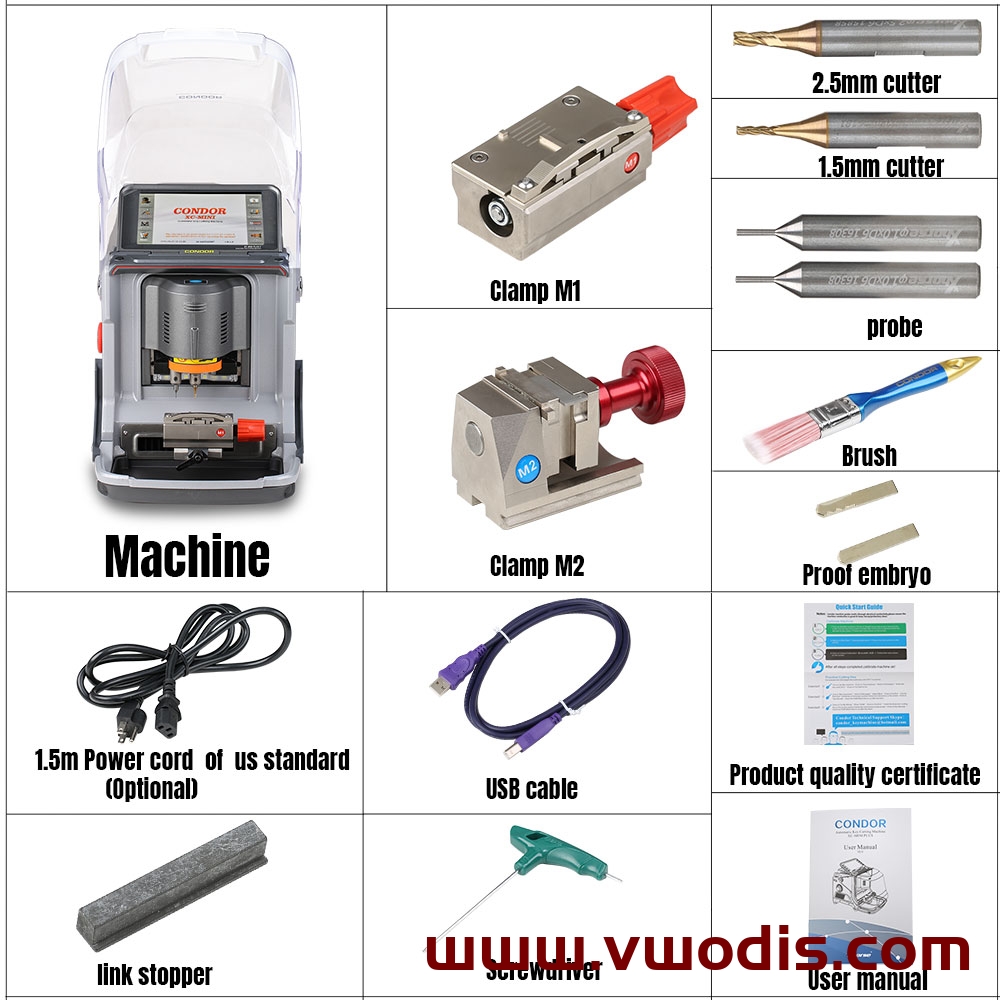

CONDOR XC-MINI Plus Package List:
1pc x CONDOR XC-MINI Plus Machine Body

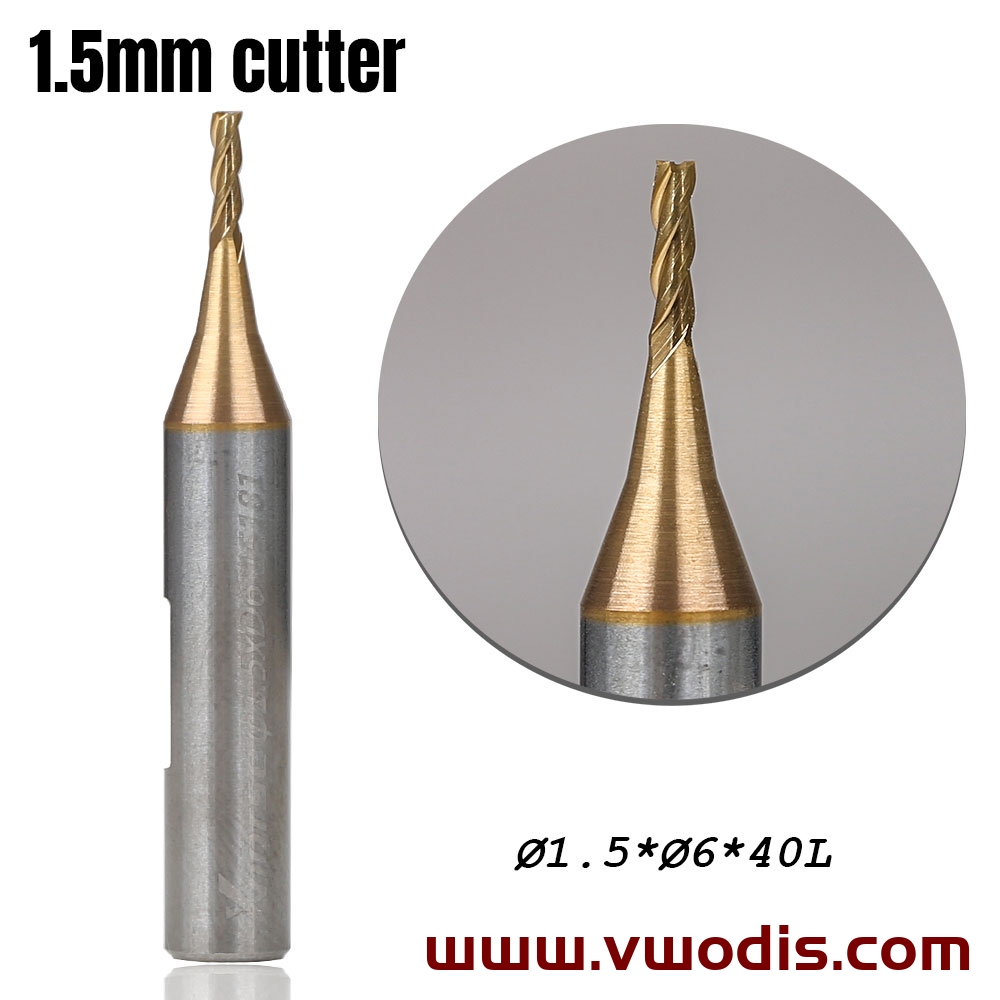

1pc x 1.5mm Cutter
1pc x 2.0mm Cutter

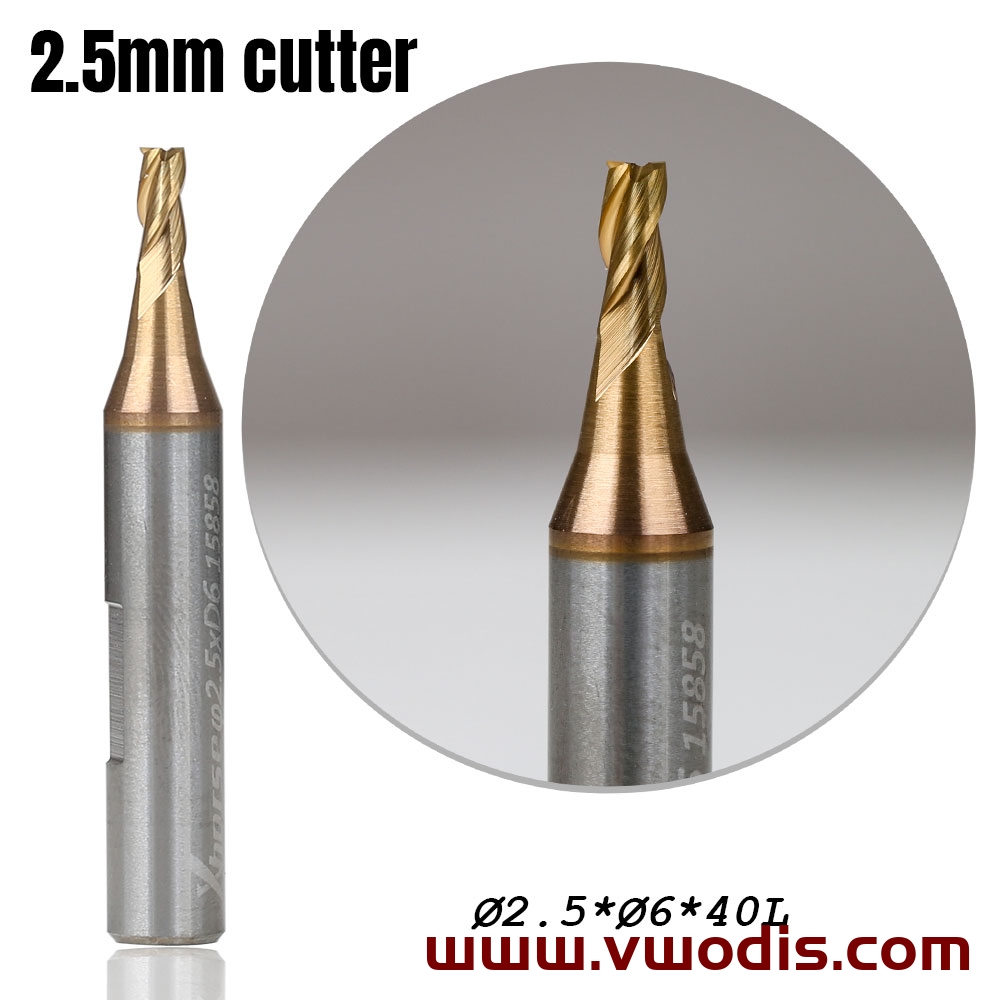

1pc x 2.5mm Cutter

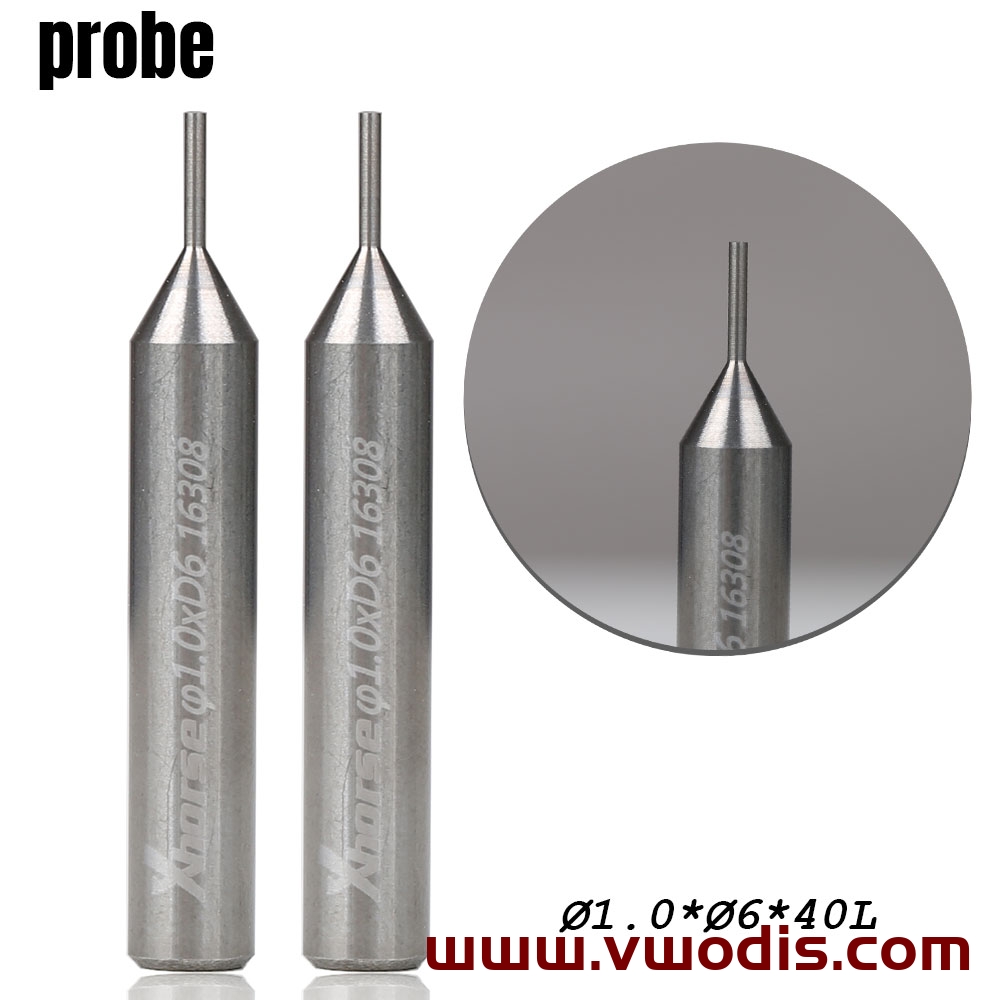

1pc x 1.0mm Probe
1pc x Power cord (1.5m) (Chinese Standard)
1pc x USB Cable(1.5m)
1pc x Brush
1pc x M1 Clamp for Single/Double sided keys
1pc x M2 Clamp for Channel-track keys
1pc x Quick Start Guide
1pc x User Manual
How to Update Condor XC-MINI Plus Online?
The are 3 ways to get ‘Upgrade kit’ file for firmware update
1.Contact your distributor ask for the software.
2.Contact Xhorse technical support

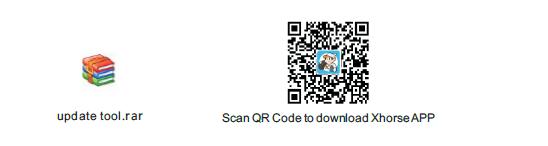

3.Scan the QR code to download and install Xhorse APP.

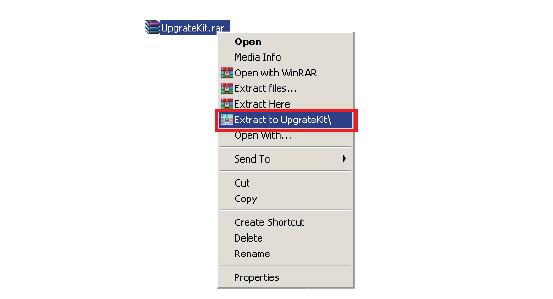

1) Unzip the Upgrade kit file after the file has been downloaded .

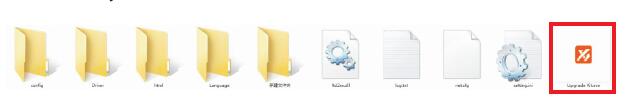

2) Run ‘Upgrade Kit.exe’ and connect the machine with the pc, do not turn off the
machine during update process and also the upgrade kit software will update
automatically.

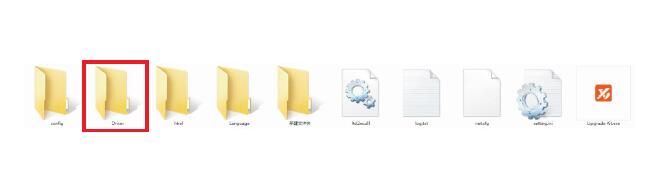

3) Open the file of ‘Driver’ from those decompressed files and choose a relatively
new driver to install. If the computer still can not recognize the machine after
the installation of the driver, it is advisable to change to another driver. If all the
drivers fail, please contact your distributor or technical support from the
manufacturer.

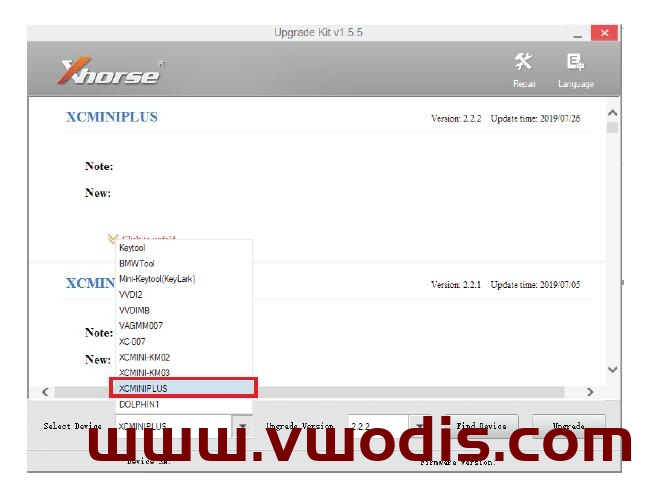

4) After the machine is successfully communicated with the computer, read the serial number,
then select theXC-MINI PLUS and click to update.
Note:Please keep the machine connected to the computer by USB during the update
