【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

Free your eyes, put on your headphones and listen!

故障现象:首页触屏无反应

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

临时解决方案:手工升级AED单元

步骤:

  1. 准备空U盘一个,固件一份.
  2. 解压并拷贝固件到 U盘根目录。
  3. 在车机端,右上角双指,进入RED菜单(工程模式)。插入U盘,手工升级。

注意事项:

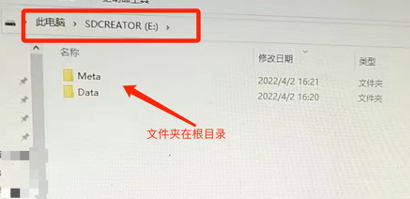

  1. SD卡数据格式:解压数据后有两个文件夹,需要将这两个文件夹拷贝到SD卡根目录。如下图:

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

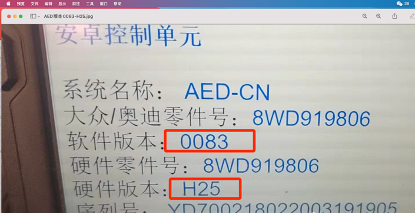

2.  进入ODIS引导,5F – 识别 – 子系统 – 检查是否可以识别安卓控制单元。不能识别该方案不能使用,正常如下图,下图以外的其他硬件和软件版本请自行测试。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

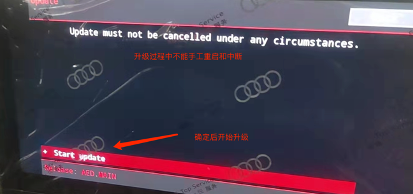

3.  升级中,不能手动重启不能中断。可能会造成安卓盒子单元无通讯。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

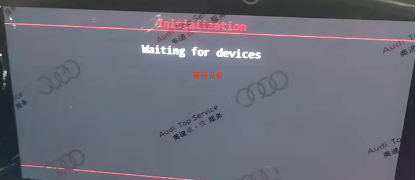

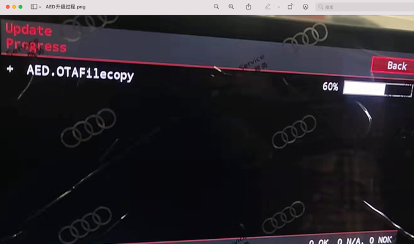

4.  出现下面界面,是正常现象,请耐心等待。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

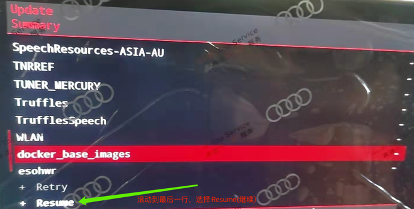

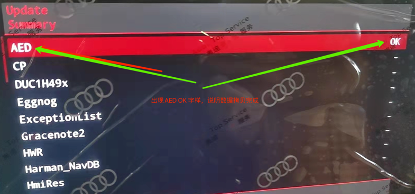

5.   出现下图AED OK 字样,表示数据拷贝完成,然后滚动到最后一行,选择继续。系统自动重启。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

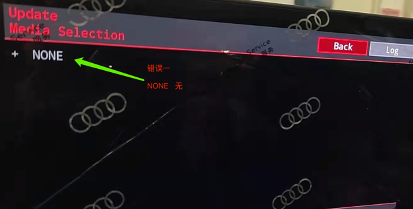

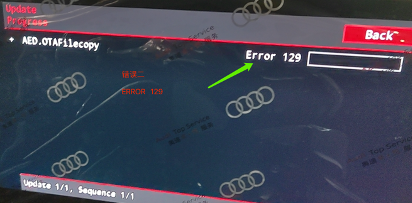

6.    升级开始或升级中出现下图1 ,表示SD数据不正确或数据路径不正确。请参照注意事项一排除。图二 ,表示数据读取错误,请重新下载数据或重新拷贝数据。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

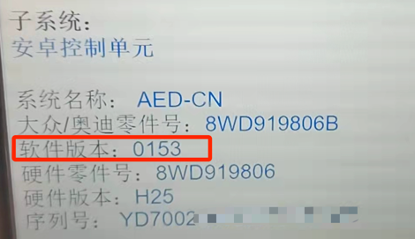

7.    本文当前提供的数据版本为 0153 。 升级后使用ODIS 读取5F 子系统 安卓控制单元软件版本为0153 ,显示0153表示升级成功。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

8.  手工升级固件后,立即使用ODIS读取软件版本是不会变化的,只有在完全休眠后(断开诊断接口,关闭四门两盖,锁车20分钟后。)再次启动,安卓单元自动加载新固件,只有这时读取的软件版本才是升级后的版本。

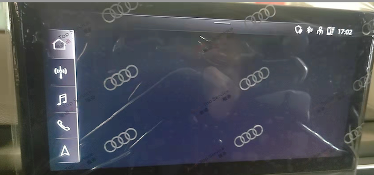

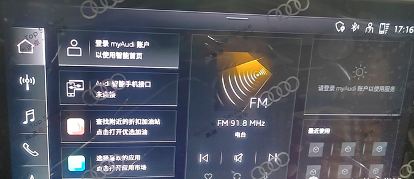

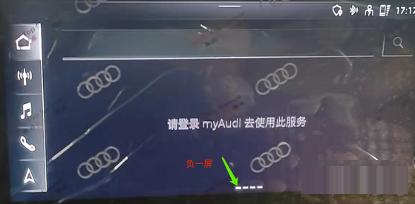

9.  升级该固件后,首页如下图:且向右滑动,会出现负一屏。

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件

【固件】奥迪MIB3-3274升级到3393以上-安卓盒子版本不兼容-首页触屏无反应修复固件
